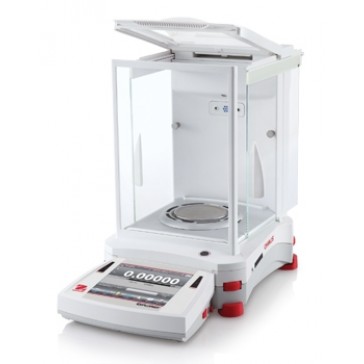

Ohaus Explorer Semi-Micro Balances

Quick Overview

Built for Sophisticated, Professional Weighing


When laboratory work and research requires accuracy to the hundred-thousandth, there is simply no room for error. The Explorer Series of semi-micro balances has been designed with the technology to ensure that your very specific weighing results are accurate. Sophisticated laboratories requiring accuracy and looking for innovative technology to obtain measurement results can find both in Explorer semi-micro balances.


Accessories for these balances can be found here.

Availability: In stock

Product Name Price Qty
EX125D - Ohaus Explorer EX125D Semi-Micro Balance - 120g Capacity
Call For Price
EX225D - Ohaus Explorer EX225D Semi-Micro Balance - 120g/220g Capacity
Call For Price
EX125 - Ohaus Explorer EX125 Semi-Micro Balance - 52g/120g Capacity
Call For Price
EX225D/AD - Ohaus Explorer EX225D/AD Semi-Micro Balance - 220g Capacity
Call For Price
EX225/AD - Ohaus Explorer EX225/AD Semi-Micro Balance - 120g/220g Capacity
Call For Price

Attachments

Accessories for these balances can be found here.



Model EX125D EX225D EX125 EX225D/AD EX225/AD
Capacity 52g/120g 120g/220g 120g 120g/220g 220g
Readability (d) 0.01mg/0.1mg 0.01mg/0.1mg 0.01mg 0.01mg/0.1mg 0.01mg
Repeatability (20g) 0.015mg
Repeatability (100g)  0.1mg 0.02mg/0.1mg 0.02mg 0.02mg/0.1mg 0.03mg
Linearity +/- 0.1mg
Span Calibration Points 50g/100g 100g/150g/200g 50g/100g 100g/150g/200g 100g/150g/200g
Calibration     Standard AutoCal, AutoCal on Change of 1.5 degree temperature change, 3 hours
Automatic Door  n/a    Standard
Weighing Units  g, mg, kg, ct,gn, oz, ozt, lb, dwt, N, mom, tical, msg, tola, baht, Hong Kong Tael, Singapore Tael, Taiwan Tael, Custom Units 1, Custom units 2, Custom units 3
 Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing, Filling,
Totalization, Formulation, Differential Weighing, Peak Hold,
Density Determination, Pipette Adjustment, Statistical Quality Control
 Stabilization Time 0.1mg:  ≤3 second, 0.01mg: ≤8 second
 Sensitivity Temp. Drift      0.50ppm / °C
Min-Weight (typical)  20.0mg, fine range (USP, u=0.10%, k=2)
 Min-Weight (Optimal) 9.0mg, fine range (USP, u=0.10%, k=2) SRP≤0.41d
Display  14.5cm (diagonal) Full-Color touch screen
Interface    Standard Connectivity: 1 USB host, 1 USB device, 1 RS232
Optional connectivity: 2nd RS232, Ethernet
Working Environment      10°C - 30°C, 85% RH, non-condensing
Storage Conditions 10°C - 60°C at 10% to 90% RH, non-condensing
Power Supply  AC Adapter Input: 100-240 VAC, 0.6A 50/60Hz, AC Adapter Output: 12V DC 1.5A
Pan Size      Ø 80mm
Dimensions (WxHxD)  230 x 393 x 350 mm
 Shipping Dimenstions (WxHxD) 632 x 640 x 467 mm
 Net Weight 7kg    7.5kg
Shipping Weight   12kg   12.6kg

Accessories for these balances can be found here.
