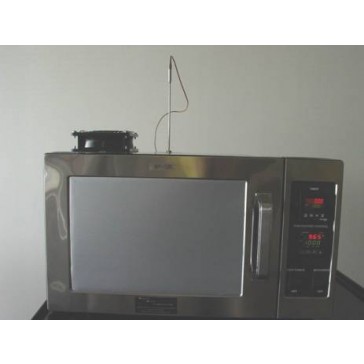

High Temperature LOI / Ashing Microwave Oven LBP120

Quick Overview

The LBP120 is a high temperature Loss on Ignition (LOI) / Ashing microwave with simple user selectable "time at temperature" control settings. The timer and temperature controller are programmed by the user. The timer begins timing once the temperature controller reaches its programmed temperature. The temperature controller maintains the muffle air temperature to the programmed value. The timer and temperature controller are very straight forward and simple to program. To further ease programming, there is a printed quick start instructions mounted to the cover. The microwave produces 1,000 Watts of microwave power for fast heating and ashing.


Included with the unit is a muffle inside the oven cavity that protects the microwave from the heat generated. The muffle has removable inserts with microwave susceptors that convert the microwave energy to thermal heat. The inner muffle is 6" x 6" x 3 1/2"tall. The temperature inside the inner muffle can increase from 20oC to 1,000oC in under 35 minutes when empty. Sample heating times depend on the sample loads inside the muffle.

Availability: In stock

Product Name Price Qty
LBP120 - High Temperature LOI / Ashing Microwave Oven 120V, 60Hz
Call For Price
LBP120/230 - High Temperature LOI / Ashing Microwave Oven - 230VAC - 50Hz
Call For Price


Features:


  • - 120 Volt operation, 15 Amperes. Needs no special wiring. (230VAC, 50Hz input available.)
  • - Economical LOI / Ashing microwave
  • - Up to 1,000 Watts of microwave power
  • - Simplified timer and temperature control. Timer begins timing process once desired temperature is reached
  • - Timer and temperature controller retains last protocol even with power removed.
  • - Timer can be programmed in minutes or hours
  • - Temperature controller can be programmed in degrees Celsius or Fahrenheit
  • - Quick program operation instructions on the microwave cover just above the control panel for easy use
  • - High volume cooling for long life
  • - All cooling fans operate when main power is on to efficiently cool the microwave
  • - Reaches 1,000oC in less than 35 minutes from 20oC starting temperature when empty
  • - Susceptor-coated inner muffles (left, right, rear and top) are replaceable
  • - Muffle rated for 1,100oC continuous use
  • - Large muffle door for easy loading and unloading
  • - Replaceable microwave safe type K temperature probe rated for 1,000oC continuous use
  • - Compact unit. Uses minimal counter space
  • - Stainless steel cavity and cover for easy clean up, chemical resistance and long life
  • - Fully safety tested including microwave leakage
  • - Meets US FCC requirements and can be tested for Canadian CSA requirements.


Specifications:


Electrical:

 Input Power: 120 Volts/ 60 Hz. 15 Amp dedicated circuit.

Physical:

 Outer dimensions: 22" W x 13 1/2" H x 16" D (without handle)
     Inner muffle dimensions: 6" W x 3 1/2" H x 6" D
     Weight/Shipping Weight: 45 lbs / 52 lbs

Microwave:
     Frequency: 2.45 GHz. an ISM frequency
     Microwave leakage: Less than 5mW/cm2 at 5cm, meeting FCC/FDA/CDRH requirements

SKU LBP120-LBP120/230
Hazardous Materials No
Product Brand --- None ---
Featured Product No
Featured Order No
