Our lift-out grids are designed to accept lamellae prepared by FIB or FIB/SEM systems. Specifications: Can hold up to 8 samples Made from molybdenum and are 3.0mm in diameter Allows back side milling Easy access from front and back Silicon protects the area of interest (AOI) Packaged 50 per box in no-VOC gel-pak boxes.
Easy Access for Needle and GIS (Gas Injection System) | |
Back Side Milling:
|
|
Grids are protected by storage in no VOC Gel-Pak boxes, 50 Grids per box |
|

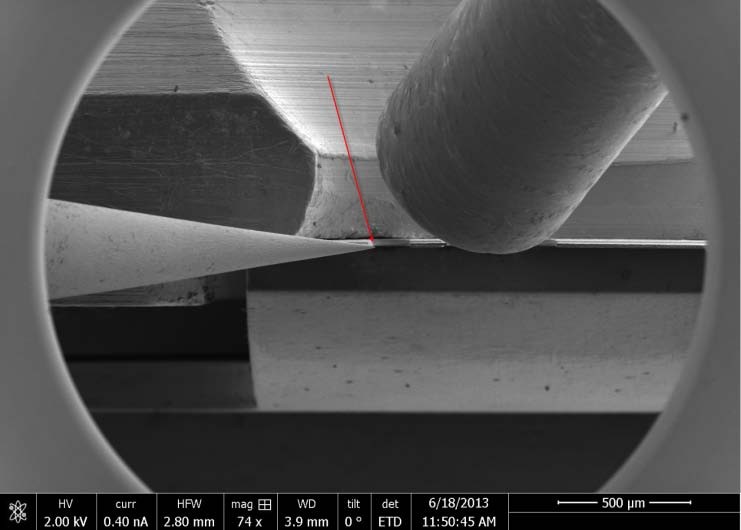

Top down SEM view, sample on needle, GIS and FIB ready to weld sample to the grid. Stage is tilted at 0.0 degrees |
|

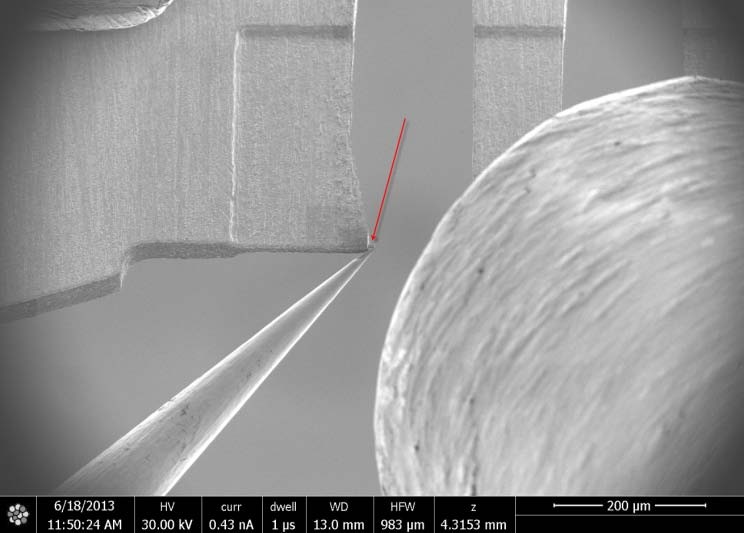

Side FIB view, sample on needle, GIS and FIB ready to weld sample to grid. State tilted to 0.0 degrees |
|

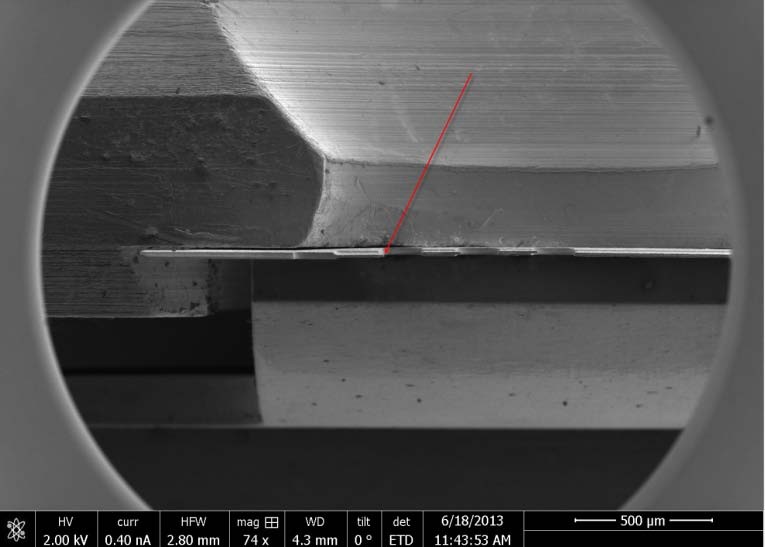

Top down SEM view, sample is attached to the gird, ready for the final thinning. Stage is tilted to 0.0 degrees. |
|

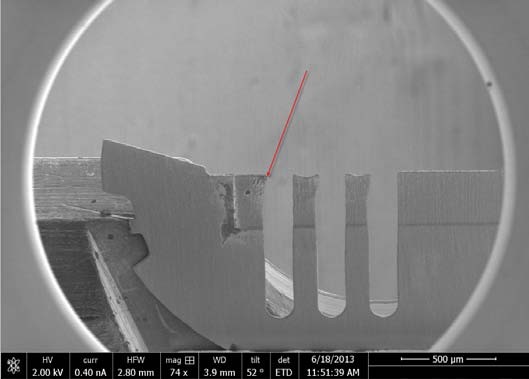

Top down SEM view, sample is attached to the grid, ready for the final thinning. Stage is tilited to 52.0 degrees |
|

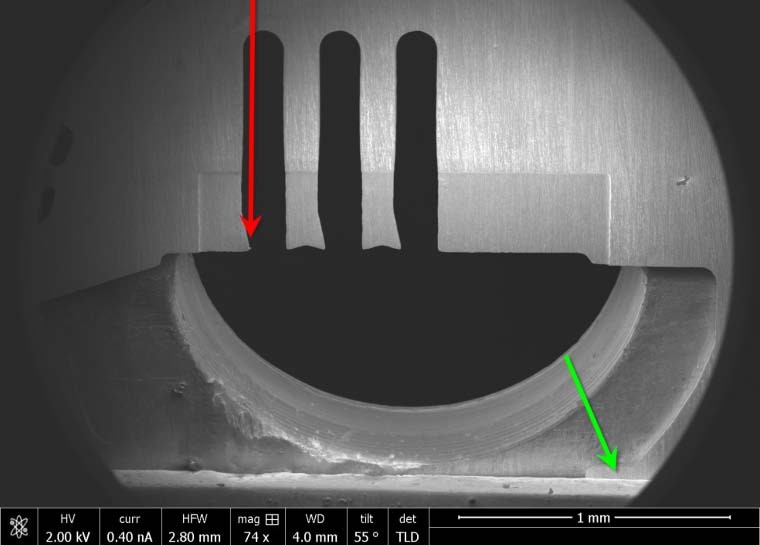

Topdown SEM view, grid and sample was removed from the system,inverted by rotating it 180 degrees and clamped The stage is tilted to 55 degrees allowing the beam direct access to the sample from the back side. |
|
The sample (green box) is trimmed to <100nm from the back side. The wafter silicon is protecting the AOI from damage by the FIB. |
SKU | 38060-38064 |
---|---|
Hazardous Materials | No |
