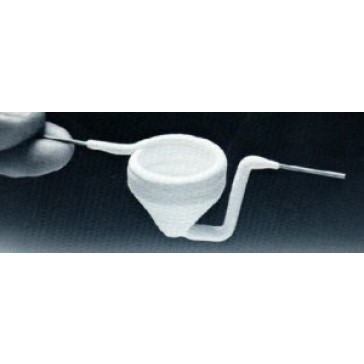

The alumina ceramic coated tungsten evaporation basket is an internally heated crucible that is designed to provide the means for vacuum evaporation of a number of various metals, and at the same time provide a more useful crucible life with these type metals.
Providing strongly upward evaporation in the deposition profile, these tungsten/alumina crucibles maintain molten metal evaporants as an induction propelled spinning ball inside the cavity. Most materials can be completely evaporated without loss to the chamber. Recommended evaporant materials are nickel, iron, or their alloys, as well as a broad range of other metals, such as gold, tin, indium and silver. Other materials which can be evaporated include antimony, bismuth, cadmium, cobalt, copper, lead, manganese, palladium, zinc and alloys such as nichrome and permalloy.
The following are approximate maximum recommended usage parameters for achieving a calculated wire temperature of 1525o C, and an estimated surface temperature of the crucible of 1475o C. Size measurements are in inches. | ||||||||
Catalog Number | Wire Diameter | Length | Height | Top ID | Inside Depth | Watts | Volts | Amps |
30326 | 0.020" | 4.0" | 0.375" | 0.150" | 0.225" | 62.70W | 5.70V | 11.00A |
30327 | 0.040" | 4.0" | 0.500" | 0.375" | 0.350" | 248.00W | 6.20V | 40.00A |
30328 | 0.050" | 4.0" | 0.925" | 0.500" | 0.775" | 350.00W | 7.00V | 50.00A |
30329 | 0.050" | 4.0" | 1.125" | 0.900" | 0.975" | 768.00W | 15,80V | 48.60A |
30331 | 0.040" | 3.25" | 0.875" | 0.790" | 0.725" | 429.00W | 13.00V | 33.00A |
30332 | 0.040" | 4.0" | 0.575" | 0.420" | 0.425" | 272.00W | 6.90V | 39.40A |
SKU | 30326-30332 |
---|---|
Hazardous Materials | No |
Product Brand | --- None --- |
Featured Product | Yes |
Featured Order | 6 |
